Meat grinder series

Meat grinder series

Your Current Location ： Home Products Meat grinder series

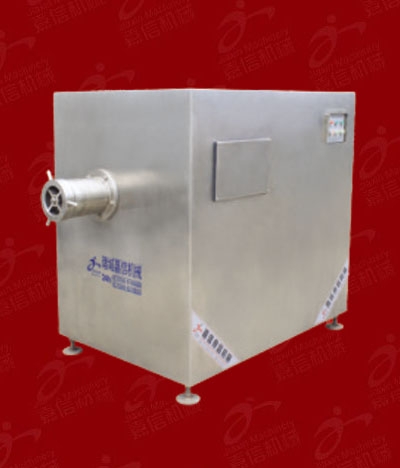

JRJ-200 Frozen meat grinder

Name：JRJ-200 Frozen meat grinder

Details
    This machine can not thaw meat cutter directly cut, reducing the nutritional content of meat and protein loss through the hole with knives for the production of different meat and meat products. Without prejudice to the muscle fibers, no significant warming of the product, to extend the shelf life of products, frozen meat grinder work mainly by rotation of the screw in the hopper to push raw meat cutter box pre-cut plate, use rotation the cutting blade and the plate edge formed by shearing eye the meat chopped and screw extrusion under pressure, will continue to discharge orifice meat material outside. I produced the meat grinder parts in contact with raw meat are made of high quality stainless steel, structural design is easy to disassemble and clean, large auger shaft lead into the large feed opening, feeding smooth, high production efficiency. Reasonable design, low temperature meat material, which will help preservation.

Model

JRJ-130

JRJ-160

JRJ-200

Dimensions

1315x700x1100mm

1630x1100x1450mm

1780x1000x1580mm

Motor Power

11kw

15kw

22kw

Rated voltage

380v

380v

380v

Production capacity

1500-2000kg/h

2000-3000 kg/h

3000-5000 kg/h

Auger speed

190r/min

136 r/min

87 r/min

Hole Knife Model

Φ4-Φ35mm

Φ4-Φ35mm

Φ8-Φ35mm

Weight

700kg

1200kg

1860kg
